dsh-image-gen

Generate images in DeepSeek Harness with OpenAI gpt-image-2.5-flare (or gpt-image-2.5-sunburst and gpt-image-2), using a signed-in Codex subscription by default or an API key when explicitly configured.

Linked development installs also resolve Codex Connect from the active DSH Profile. This uses the connector's public store, including its selected account in the current multi-account format, instead of mistaking an inaccessible optional dependency for a signed-out account. The same path has been verified against the installed Profile without displaying credential values.

中文说明

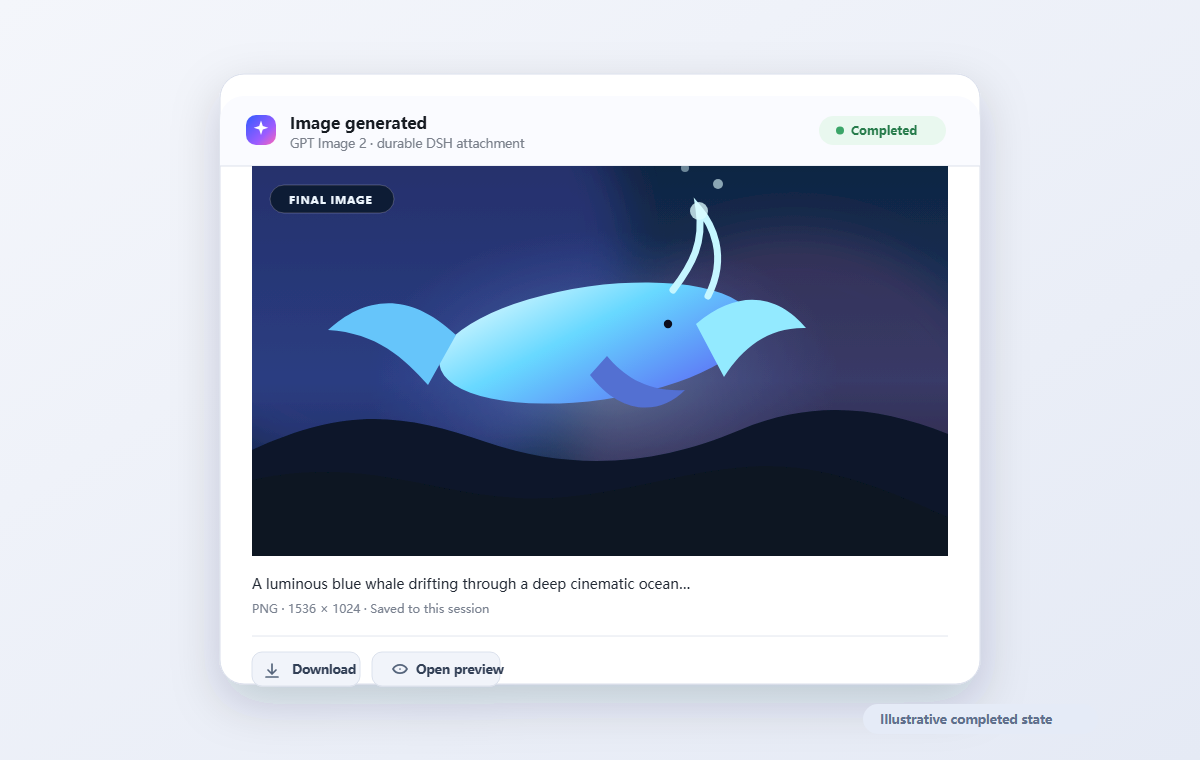

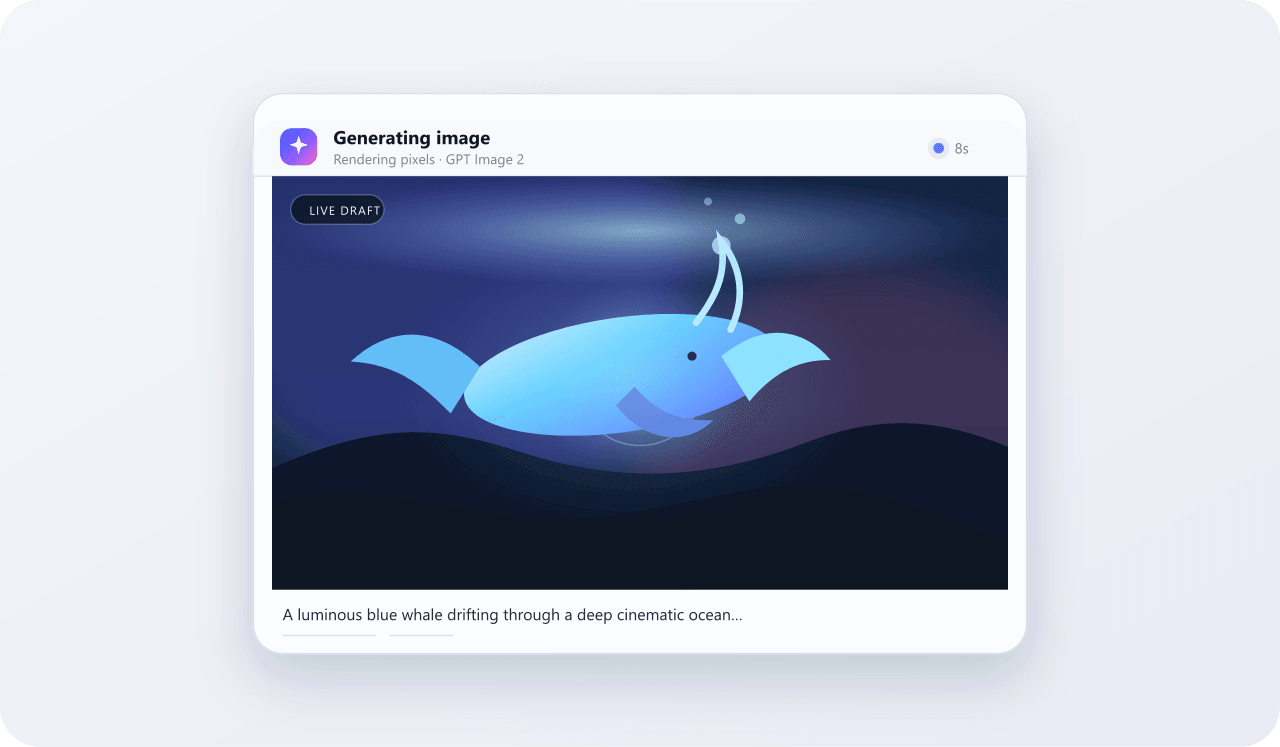

These illustrations mirror the shipped developing and completed card states. API-key mode can replace the light field with real streamed drafts; Codex subscription mode animates until its non-streaming response arrives. The completed state remains available as a durable DSH attachment with preview and download controls.

Capability map

Highlights

• Registers the Codex-compatible model tool name image_gen.
• Selects a provider image model per call or per deployment on both access paths: GPT Image 2.5 Flare and Sunburst, plus the older gpt-image-2.
• Accepts the GPT Image 2.5 quality ladder (auto, low, medium, high, xhigh, max); both access paths accept the aliases, and the subscription endpoint budgets its own output from the requested tier.
• Reuses the refreshable OAuth login owned by dsh-codex-connect; no OPENAI_API_KEY is required for Codex subscription mode.
• Streams up to three real provider partial images when the API-key Images endpoint is selected; Codex subscription mode keeps the developing animation active until its non-streaming response arrives.
• Cross-fades each partial over one animated developing plate, then sharpens into the final image.
• Stores the final image in DSH's immutable attachment store and supports replay, lightbox preview, and download.
• Keeps model-facing tool output text-only, so image generation does not make a text-only model route reject conversation history.
• Supports native tool calls and nested Code Mode calls with the same durable card.
• Resolves credentials per operation, rejects redirects, limits response sizes, validates image bytes through DSH, and retries only transient failures.
• Includes Chinese and English UI copy plus prefers-reduced-motion support.

Codex parity and improvements

OpenAI Codex's built-in image_gen tool hardcodes gpt-image-2, calls the ChatGPT Codex Images endpoint with subscription OAuth, records one working state, and saves the completed image under Codex's generated-images directory. Its public backend currently requests a non-streaming JSON response and its UI does not expose a distinctive diffusion animation.

dsh-image-gen keeps the compatible image_gen name and improves the visible process:

Primary references:

• Codex image-generation tool
• OpenAI image-generation skill
• GPT Image 2.5 Flare model
• GPT Image 2.5 Sunburst model
• GPT Image 2 model
• Image generation guide

Compatibility

Verified environment:

• DeepSeek Harness 0.1.5-rc.1 (real Web host boot from this repository, plugin-tree load, image_gen registration, served client module, plus typecheck, deterministic build, tests, and package smoke)
• DeepSeek Harness 0.1.2-rc.1 (QA Web Profile load, plugin enablement, Host image_gen registration, Client tool-view load, and historical generated-card replay)
• dsh-codex-connect 0.1.0-alpha.4.34 for the live subscription runs (0.1.0-alpha.4.4 was the version verified for the 0.3.x releases)
• Node.js 24.15.0 (package support: ^22.19.0 or >=24.0.0)
• DSH Web profile on Windows 11
• Real Codex subscription generation, durable replay, Blob preview, and download controls

Version 0.3.2 targets 0.1.2-rc.1 and no longer claims compatibility with the alpha builds. The earlier 0.1.2-alpha.5 lifecycle result belonged to dsh-image-gen 0.3.1; it is retained as history but does not transfer to this release. The compatible rc.1 manifest entry records the verified DSH Host/Client/tool-view integration above. A fresh subscription generation on rc.1 had reached the provider but returned HTTP 403, so that specific rc.1 claim is superseded: on DSH 0.1.5-rc.1 the same subscription path now returns HTTP 200 for gpt-image-2.5-flare and gpt-image-2.5-sunburst (2026-09-11).

Version 0.4.0 adds GPT Image 2.5 support (gpt-image-2.5-flare / gpt-image-2.5-sunburst, a per-call model, and the xhigh / max quality tiers). The keyless suite verifies the request shaping; live Codex subscription requests then confirmed the private endpoint accepts both 2.5 aliases, so the subscription path defaults to gpt-image-2.5-flare too. The real subscription runs used the signed-in ChatGPT quota, not a billed API account, so no API billing was incurred.

The same release fixes a real DSH mount failure that mocked tests could not see. connection.rpc.handle() registers the plugin's loopback route through webServer.register(), and on DSH 0.1.5-rc.1 the connection loader entry carries webRuntime but not webServer, so the whole plugin tree failed at boot with cannot get property "webServer" without inject. Because a loader entry — not a module's exported inject array — owns the runtime capability boundary, cordis.patch.yml now grants webServer to the connection entry and declares the plugin's own services. Verified by booting a real DSH Web host from this repository with an empty profile patch: the plugin tree loads, the server answers HTTP 200, and the served client module is this build.

Install

Review third-party source before installation and pin release tags or commits. For the default keyless subscription path, install Codex Connect, sign in once, then install this plugin:

dsh plugin --profile web add dsh-codex-connect
dsh openai-codex login
dsh plugin --profile web add github:LeemanCheung/dsh-image-gen#v0.4.1

v0.4.1 is the current release (GPT Image 2.5 support plus the image-read recovery fix). For production, pin the exact commit you reviewed (.../dsh-image-gen#<sha>) rather than a moving branch; main carries unreleased work between tags.

This repository does not publish to npm. The npm package named dsh-image-gen belongs to a different project by another author, so npm install dsh-image-gen or a bare dsh plugin add dsh-image-gen will not install this plugin. Install from this GitHub repository.

For local development:

git clone https://github.com/LeemanCheung/dsh-image-gen.git
cd dsh-image-gen
npm install
npm run check
dsh plugin --profile web add .

The repository commits lib/index.js and lib/client.js, so a pinned Git install does not need to run a dependency build script. Restart the DSH Host after installation and refresh the Web page.

Authentication

authMode: auto is the default. It first asks the installed dsh-codex-connect package for its DSH-owned, refreshable ChatGPT OAuth credential and sends it only to the fixed first-party endpoint https://chatgpt.com/backend-api/codex/images/generations. If Codex credential resolution, compatibility checking, or refresh fails for any non-cancelled reason, it then tries the DSH credential reference named by apiKeyEnv (default OPENAI_API_KEY); if neither works, it returns the combined failure. codex-subscription never falls back.

Use authMode: codex-subscription to forbid API-key fallback, or authMode: api-key to use only the configured Images API account. Never put an OAuth token or API key in cordis.patch.yml, chat messages, Git, or screenshots. The plugin resolves authentication for every generation and does not retain it after the request.

Use

Ask naturally in a DSH conversation, for example:

Generate a cinematic 16:9 product photograph of a translucent mechanical keyboard on a dark glass desk, violet rim light, no text.

The model calls image_gen. While it runs, the card shows the developing animation. API-key mode replaces the light field with each real streamed partial; Codex subscription mode reveals the final image when its JSON response arrives. DSH's existing interrupt control cancels the request. The settled card supports preview and download.

Tool options:

• prompt: detailed generation instructions, 1–32,000 characters and at most 64,000 UTF-8 bytes.
• model: optional provider image model for this call, such as gpt-image-2.5-flare, gpt-image-2.5-sunburst, or gpt-image-2. Omit it to use the deployment model, or the subscription default when the subscription path is active. It accepts letters, digits, and . _ : - up to 128 characters. Both access paths accept the GPT Image 2.5 aliases.
• reference_image_path: optional PNG, JPEG, or WebP path. DSH asks for one-time approval naming the file and upload origin before reading it. The bytes are validated without storage, sent only to the API-key /images/edits endpoint, and committed as a durable audit attachment only after the Provider succeeds. This mode needs authMode: api-key, or auto with an API-key fallback; the private Codex subscription endpoint is not treated as an edit API.
• size: auto or arbitrary WIDTHxHEIGHT accepted by GPT Image 2.x: each edge divisible by 16, no edge above 3840, aspect ratio 1:3–3:1, and 655,360–8,294,400 total pixels.
• quality: auto, low, medium, high, xhigh, or max. GPT Image 2 accepts the first four; xhigh and max are GPT Image 2.5 tiers and are rejected by the provider on older image models.
• output_format: png, jpeg, or webp in API-key mode. Codex subscription mode currently returns PNG.
• output_compression: 0–100 for API-key JPEG/WebP only.
• background: auto, opaque, or transparent. Transparent output is a preview feature of the public Image API, requires API-key mode, and supports PNG/WebP but not JPEG.

Completed results keep the request and result distinct. size is derived from the validated final image bytes; requestedSize / requestedQuality preserve the call settings. qualitySource says whether the displayed quality came from Provider metadata or is only the requested fallback. model reports the model that actually served the request.

Configure

The bundle inserts the image-gen row with safe defaults. Override it in the selected profile's cordis.patch.yml:

- id: image-gen
  name: dsh-image-gen
  config:
    authMode: auto # auto | codex-subscription | api-key
    apiKeyEnv: OPENAI_API_KEY
    baseUrl: https://api.openai.com/v1
    model: gpt-image-2.5-flare
    defaultSize: auto
    defaultQuality: auto
    defaultOutputFormat: png
    defaultOutputCompression: 90
    defaultBackground: auto
    moderation: auto
    partialImages: 3
    requestTimeoutMs: 120000
    maxRetries: 2
    retryBaseMs: 1000
    maxConcurrent: 2

baseUrl, model, moderation, partialImages, output compression, and API pricing apply only to API-key mode. The default model is gpt-image-2.5-flare; set it to gpt-image-2.5-sunburst for edit-heavy work or to gpt-image-2 to stay on the older model. Codex subscription mode serves gpt-image-2.5-flare by default, accepts a per-call model, uses the fixed first-party Codex endpoint, returns PNG, and never sends OAuth to baseUrl. Configuration fails at load for an invalid provider URL, model, or default image size. Plain HTTP is accepted only for loopback development endpoints. Every credential-bearing request uses redirect: "error".

A live subscription request on DSH 0.1.5-rc.1 (2026-09-11) confirmed that the private Codex endpoint accepts gpt-image-2.5-flare and gpt-image-2.5-sunburst; every probe returned HTTP 200 and echoed the requested model back. The endpoint does not honor the requested size and quality literally. It picks the delivered size and quality itself, and its own quality budget follows the requested tier: high returned 1774x887 with 1030 image-output tokens, while max returned 1536x1024 with 1372 tokens. The same tier therefore costs and returns more than the API-key path's documented per-tier counts, and results always describe the returned facts while requestedSize / requestedQuality keep the call's request.

API-key contract and operation bounds

Create a DSH credential named by apiKeyEnv (default OPENAI_API_KEY) or export that environment variable before starting the DSH Host, then set authMode: api-key. Never put the secret in the profile patch.

A custom baseUrl must expose <baseUrl>/images/generations and, when reference_image_path is used, <baseUrl>/images/edits. Both endpoints return an OpenAI-compatible data[0].b64_json response; generations may instead stream SSE image_generation.partial_image / image_generation.completed events carrying b64_json. It must be HTTPS outside loopback.

Only transient provider failures (429, 5xx, retryable protocol/response errors, and network failures) are retried. Provider moderation and user-input errors fail immediately.

Cost note

Codex subscription calls consume the image-generation allowance associated with the signed-in ChatGPT plan. API-key calls are billed by the selected model, quality, and size; each requested partial costs additional image-output tokens according to the provider guide. GPT Image 2.5 keeps the token rates of GPT Image 2 but consumes a different number of image-output tokens per quality tier — xhigh and max cost more than GPT Image 2's former high. partialImages does not apply to subscription mode.

Data, network, and permissions

• Network: subscription mode sends the prompt and supported options only to https://chatgpt.com/backend-api/codex/images/generations; API-key mode sends them to baseUrl. An approved reference edit also uploads the validated reference bytes to that configured API origin.
• Credentials: subscription mode asks dsh-codex-connect for its DSH-owned OAuth credential; API-key mode resolves the configured DSH credential reference. Neither secret is stored in plugin state, logs, metadata, or session history.
• Storage: stores completed images through the DSH attachment service. A reference is validated in memory first and becomes durable only after its edit request succeeds. Partial frames stay in bounded Host memory while the call is active and are then discarded.
• Browser access: uses a loopback-only private RPC. A final image is returned only after the Host finds the exact attachment reference in the requested session and call record.
• Workspace files: does not write the session workspace. It reads a reference_image_path only after DSH records a one-time approval for that exact tool call.
• User data: prompts and tool arguments follow DSH's normal session logging. The selected Provider receives the prompt and, only for an approved API-key edit, the reference image bytes under the terms governing that API account.

Troubleshooting

OpenAI Codex is signed out

Install dsh-codex-connect, sign in from its DSH settings page or run dsh openai-codex login, then retry. Never paste the OAuth token into chat.

No credential is configured for OPENAI_API_KEY

This appears in explicit API-key mode, or after automatic Codex fallback. Configure the credential for the DSH Host process or switch to a signed-in Codex subscription. Never send the key in chat.

Image generation was blocked

Revise the prompt. The plugin does not retry provider moderation or user-input errors.

Preview unavailable after success

Refresh the page. If the card still cannot load, inspect Host logs and verify that the profile still mounts dsh-image-gen and its attachment store is available.

dsh plugin --profile web why dsh-image-gen
dsh --profile web --dump-config

Requests time out

Increase requestTimeoutMs within its 10–300 second range or select a lower quality. API-key mode can also use JPEG. DSH interruption still aborts the upstream request.

Roll back or remove

Before changing a production profile, take a DSH config snapshot when the undo plugin is installed. To uninstall:

dsh plugin --profile web remove dsh-image-gen

Restart the DSH Host and refresh the page. Existing image records remain in session history; their custom card requires the plugin to be installed.

Development

npm install
npm run typecheck
npm test
npm run build
npm pack --dry-run

The keyless suite uses deterministic mocked SSE/JSON responses and a local redirect server. It covers both authentication modes without reading real secrets, including the GPT Image 2.5 model and xhigh / max quality request bodies. Real-provider checks are manual because they consume a Codex subscription allowance or bill an API account. The 0.2.0 release was manually verified with one signed-in Codex subscription generation and cold-session browser replay.

For the 0.4.0 work, npm run check covered typecheck, 51 keyless tests, the deterministic build, the built-artifact smoke (which now also asserts the loader-entry grants), and publint. Beyond that: a real DSH 0.1.5-rc.1 Web host booted from this repository with an empty profile patch, and live Codex subscription requests exercised gpt-image-2.5-flare / gpt-image-2.5-sunburst with the high and max tiers. Those live runs drew on the signed-in ChatGPT quota.

The build emits:

• lib/index.js: Host Cordis plugin.
• lib/client.js: browser module-loader bundle.
• lib/client.js.map: browser source map.

Known limitations

• Reference edits use a DSH filesystem path plus one-time external-upload approval. A dedicated attachment-picker UI remains future work; headless or approval: never sessions reject such uploads.
• The Codex subscription endpoint is a private compatibility surface. Live requests confirmed it accepts both GPT Image 2.5 aliases and the xhigh / max tiers, but it ignores the literal requested size and quality and serves its own (2026-09-11 runs: 1774x887 / 1030 tokens at high, 1536x1024 / 1372 tokens at max). It is still not documented as an Image API edit endpoint, so subscription reference edits and public-API-only output options stay disabled.
• Subscription size and quality shape the provider's own budget rather than a literal request, so the same tier can deliver a different size and cost than the API-key contract documents.
• A card reads its image over the loopback RPC, and the Host authorizes that read from the session store, which is written asynchronously. A read can therefore arrive before the completed result is durable. 0.4.1 treats that case as recoverable rather than terminal: the Host keeps the just-generated reference for servedResultTtlMs (default 5 minutes; never a long-term authorization path), answers with a distinct pending reason, and the card retries with bounded backoff before showing an actionable message. Set servedResultTtlMs: 0 to make the session store the sole authority at every moment.
• Final previews are intentionally loopback-only. Remote Web clients receive a clear unavailable state rather than image bytes.
• Current DSH credential resolution and attachment saving do not accept cancellation signals. The plugin checks cancellation before and after those stages and waits for them during teardown, but cannot interrupt a provider implementation that stalls inside either service.
• OpenAI may evolve arbitrary-size limits or event fields. The plugin fails closed on incompatible responses instead of guessing.
• GPT Image 2.5 API-key generation is verified against deterministic mocked provider responses, not against a billed live account. The Codex subscription path is verified live for gpt-image-2.5-flare and gpt-image-2.5-sunburst; a real API-key call and gpt-image-2 on the subscription endpoint remain unverified.

Security

See SECURITY.md for private reporting. Do not include OAuth tokens, API keys, private prompts, or generated private images in a public issue.

License

MIT
