Iwctwbh/dsh-flowglass
> A DeepSeek Harness plugin: turn the current session into a live flowgraph — three lanes, subagent branches, parallel groups, drill-down — plus a hot-reloadable session toolbox in the same drawer. MIT License. >
catalog 简介 / catalog descriptioncatalog description:流镜 Flowglass — DeepSeek Harness session flowgraph,实时可视化消息、工具组、子代理分支与步骤详情。
编辑导读Editor's Brief
## 核心特性
- Flowglass 将当前 DeepSeek Harness 会话渲染为实时流程图,采用三泳道布局、工具调用输入与输出卡片,并每两秒自动刷新。
- 子代理会话显示为独立分支,点击入口操作可打开子会话流程图,并提供面包屑导航,支持无限嵌套。
- 同时发生的工具调用会被分组到虚线并行框中,运行中的调用会高亮显示以指示当前步骤。
- 工具卡片和消息卡片可在侧层浮层中打开完整参数、结果、内容、模型和 token 元数据,不会改变流程图布局或滚动位置。
- 同一抽屉还提供 21 个可热重载的 mini-tools,覆盖项目数据、实用工具、会话洞察、AI 辅助、自检和主题选择。
## 使用场景
- Web UI 用户可以将正在进行的 agent 会话查看为用户步骤、助手步骤、工具调用和派生子代理的可视化轨迹。
- 开发者可以从同一抽屉中检查 Jira 记录、Git 历史、工作区文件、HTTP 响应、端口和计算工具。
- 会话调试可以使用同一抽屉中的 token 用量、prompt 组装、上下文窗口、工具 schema、全文搜索和血缘视图。
## 技术细节
- 动态负载是一个约 0.9 KB 的磁盘加载 stub,而实现文件保留在磁盘上,因此重新运行插件即可应用修改,无需重新定义或重新审批。
- 工具箱框架使用 Host 侧注册表和 RPC,以及 Client 侧抽屉、标签栏和 tb- 面板设计系统。
- 可选的 host-bootstrap/ 可以在会话打开时启动框架,仅需零次模型调用和一次审批点击,并且启动时可在约 0.3 秒内从 plugins.json 重建缺失插件。
- 编译后的 bundle 是按 bundleId 命名空间的静态 Host/Client 包,可通过 scripts/build-toolbox-bundle.mjs 构建,并由 verify-generated.mjs、verify-bundle.mjs 和 smoke.mjs 验证。
## 注意事项
- 动态插件需要支持 Cordis dynamic-plugin 的 DeepSeek Harness 和工作区目录,而编译后的静态 bundle 不支持热重载,需要添加新版本并重启 DSH。
- selfview 依赖仅动态可用的 harness bridge,在其原生 Remote 迁移实现之前会被静态编译器拒绝。
- Jira 等服务的凭据必须存储在 Harness 凭据存储或环境变量中,而不是存放在仓库里。
## Core Features
- Flowglass renders the current DeepSeek Harness session as a live flowgraph with a three-lane layout, tool-call input and output cards, and automatic refresh every two seconds.
- Subagent sessions appear as separate branches, and clicking the entry action opens the child session flowgraph with breadcrumb navigation for unlimited nesting.
- Simultaneous tool calls are grouped in a dashed parallel frame, while running calls receive a highlight to indicate the active step.
- Tool and message cards open full arguments, results, content, model, and token metadata in a side overlay without changing the flow layout or scroll position.
- The same drawer provides 21 hot-reloadable mini-tools covering project data, utilities, session insight, AI assistance, self-inspection, and theme selection.
## Use Cases
- Web UI users can inspect an ongoing agent session as a visual trace of user steps, assistant steps, tool calls, and spawned subagents.
- Developers can examine Jira records, Git history, workspace files, HTTP responses, ports, and calculation utilities from the same drawer.
- Session debugging can use token usage, prompt assembly, context window, tool schemas, full-text search, and lineage views from the same drawer.
## Technical Details
- The dynamic payload is a disk-loading stub of about 0.9 KB, while implementation files remain on disk so re-running a plugin applies edits without re-definition or re-approval.
- The toolbox framework uses a Host-side registry and RPC plus a Client-side drawer, tab bar, and tb- panel design system.
- Optional host-bootstrap/ can start the framework when a session opens with zero model calls and one approval click, and startup can rebuild missing plugins from plugins.json in about 0.3 seconds.
- Compiled bundles are static Host/Client packages namespaced by bundleId, can be built with scripts/build-toolbox-bundle.mjs, and are verified by verify-generated.mjs, verify-bundle.mjs, and smoke.mjs.
## Notes
- Dynamic plugins require DeepSeek Harness with Cordis dynamic-plugin support and a workspace directory, while compiled static bundles do not hot-reload and require adding a new version plus restarting DSH.
- selfview depends on the dynamic-only harness bridge and is rejected by the static compiler until its native Remote migration is implemented.
- Credentials for services such as Jira must be stored in the Harness credential store or environment variables rather than in the repository.
安装Install
dsh plugin --profile web add dsh-flowglass
把 Iwctwbh/dsh-flowglass 加入你的 DSH 配置(web profile)即可启用。
READMEREADME
Flowglass(流镜 · dsh-flowglass)
A DeepSeek Harness plugin: turn the current session into a live flowgraph — three lanes, subagent branches, parallel groups, drill-down — plus a hot-reloadable session toolbox in the same drawer. MIT License.
v2026.08.20 — DSH rc.8 compatibility verified: zero-model-call autoboot, canonical multi-workspace isolation, streaming Flow cards with live timers/interruption settlement, session-following drawer fixes, and lifecycle-safe Client timers.
中文文档见下方 中文文档。

Every plugin is mounted through a disk-loading stub: the payload is a ~0.9KB stub, the implementation lives on disk, so code edits take effect by simply re-running the plugin — no re-define, no re-approval.
Live flow
The drawer's default tab turns the current session into a living flowgraph, silently auto-refreshing every 2s (pausable via the live toggle):
- Three-lane layout — the center trunk walks user/assistant steps top-down; each tool call branches right with its input card ▶ and returns left with its output card ◀ (green on success, red on error, dashed while in flight)
- Subagent branches — a spawned child session grows its own left-column branch (entry / steps / exit) on the same row as the trunk card that started it, with steps sampled from the child's own session log
- Drill-down — click 「进入 →」on a subagent branch to open that child session's own flowgraph; breadcrumbs walk back level by level, nesting unlimited
- Parallel groups — simultaneous tool calls in one step are wrapped in a dashed 「并行 ×N」frame; the running call pulses with a highlight so you always see exactly which step the agent is on
- Zero-jump details — click a tool card for its full arguments/result, click a message card for full content with model + token metadata; details open in a side overlay instead of inflating the flow, so expand/collapse never moves your scroll position
- DSH-better-sidebar compatibility — with
dsh-better-sidebarinstalled, Flowglass registers a native session-scoped tab and pauses refresh while hidden; without it, the original standalone drawer remains available
The toolbox
The same drawer hosts 21 hot-reloadable mini-tools on top of a shared framework (Host-side registry + RPC; Client-side drawer, tab bar and the tb- panel design system):
| Group | Tools |
|---|---|
| Project | jira (query/archive), git (history/diff), files (workspace tree) |
| Utilities | trace, http, ports, calc 5-in-1 (codec / regex / cron / text diff / generator), quota (API usage), flowedit (workflow docs) |
| Session insight | usage (token/context), prompt (system-prompt assembly), context (window), tools (schema list), search (full-text), lineage (tree) |
| AI | aiassist 7-in-1 (ask / translate / optimize / review / commit message / summary / compare) — routed through a shared makeLlmHelper |
| Self-inspection | selfview (screenshot / semantic snapshot / ui_* model tools) |
| Themes | theme-teal / theme-amber (mutually exclusive, opt-in) |
- Bootstrap rebuild — the framework auto-defines and starts all missing plugins from
plugins.jsonon startup (idempotent, ~0.3s for all 22), honoring per-plugin enable memory - Zero-model-call autoboot (optional):
host-bootstrap/auto-starts the framework on session open — 0 model calls, 1 approval click, any mode - Contract smoke tests:
node smoke.mjsruns 21 simulation suites, including real rc.8 Cordis composition and multi-workspace isolation coverage
Install
Prerequisites: DeepSeek Harness running with dynamic-plugin (Cordis) support; a workspace directory (repo root = workspace root, or the repo cloned as a subdirectory of it).
Path A · compiled bundle from npm (recommended)
dsh plugin --profile web add dsh-flowglass # Flow-only (framework is implicit)
dsh plugin --profile web add dsh-dynamic-toolbox # the full toolbox
# upgrade: dsh plugin --profile web add dsh-flowglass@<new-version> && restart DSH
Compiled bundles are native static Host/Client packages: no dynamic approval, no dyn/*, Services/RPC/Slots/DOM/storage/events namespaced by bundleId. They don't hot-reload from disk — upgrade = add the new version + restart DSH.
Optional: install dsh-better-sidebar alongside Flowglass, then open 流镜 from its + menu. Side card settings can choose automatic integration, the native sidebar tab, or the legacy standalone drawer.
Path B · autoboot from source (your own machine, install once)
1. pwsh host-bootstrap/install.ps1 # idempotent; uninstall with -Uninstall
2. Restart DSH
3. Open any session in any mode → approve the Client card once
→ the framework auto-bootstraps all 22 plugins (selfview asks for one more approval)
Path C · zero-install (AI-driven, nothing persisted in DSH)
1. Switch the session to 「创造模式」(Creative mode — the only preset mounting cordis_define/cordis_run)
2. In the session: cordis_define ← plugins/toolbox/payload.json
3. cordis_run and approve once → the framework auto-bootstraps the rest
Either way: daily rebuild/rerun/toggle afterwards works in any mode — the drawer manage view and the Cordis panel drive the process-global runner directly. Credentials (e.g. Jira) live in the Harness credential store or environment variables — never in this repo. Full guide: REBUILD.md, plugin authoring: PLUGIN-DEV.md.
Build bundles locally
The same plugins/ sources can be compiled into installable npm packages:
node scripts/build-toolbox-bundle.mjs --flow # Flow-only (framework is implicit)
node scripts/build-toolbox-bundle.mjs --flow --jira # Flow + Jira
node scripts/build-toolbox-bundle.mjs --features flow,jira --version 0.1.0
cd dist/toolbox-bundles/flow-jira && npm pack # → installable tgz
dsh plugin --profile web add <tgz> # install/upgrade; remove to uninstall
--namesets the npm package name (publishable withnpm publish);--versionmust be a valid semver- Gates:
node scripts/verify-generated.mjs(dynamic-dev drift),node scripts/verify-bundle.mjs <dir> [--pack](native static contract + tarball list),node smoke.mjs(21 suites) selfviewstill depends on the dynamic-only harness bridge and is rejected by the static compiler until its native Remote migration is implemented
Why dynamic (framework advantages)
- Workspace-isolated, process-multiplexed — one process can host multiple repository toolboxes at once; registry, management actions and enable memory stay routed to the owning workspace
- Hot reload — the implementation lives on disk behind a ~0.9KB stub: re-run to apply edits, no re-define, no re-approval, no process restart
- Approval gate kept — browser code still asks once per process; nothing becomes unconditionally trusted at install time
- Immutable versions — packages coexist; update flips a pointer, rollback is one call, a failed update never loses the working version
- Self-bootstrap rebuild — dynamic plugins don't survive restarts, so the framework re-defines everything missing from
plugins.jsonin ~0.3s; the optionalhost-bootstrap/trigger reduces that to "open a session, one click" - AI-native —
cordis_define/cordis_runare model tools: an agent can build and mount a tool for itself at runtime
Develop your own tool
Coupling is deliberately narrow: a tool plugin only needs ctx.get('toolboxRegistry').register(desc, handler) plus the HTML panel protocol — three steps, a ~15-line skeleton, no client code for Host-only tools. Full guide: PLUGIN-DEV.md.
License
MIT © 2026 Iwctwbh
中文文档
Flowglass(流镜 · dsh-flowglass)
DeepSeek Harness 插件:把当前会话实时画成流程图——三列泳道、子代理分支、并行分组、逐层钻取;同一个抽屉里还挂着一组可热重载的会话小工具。MIT License。
v2026.08.20 — 已验证兼容 DSH rc.8:零模型调用自举、canonical 多工作区隔离、Flow 流式助手卡/实时计时/中断收口、抽屉会话跟随修复,以及 Client Timer 生命周期化。

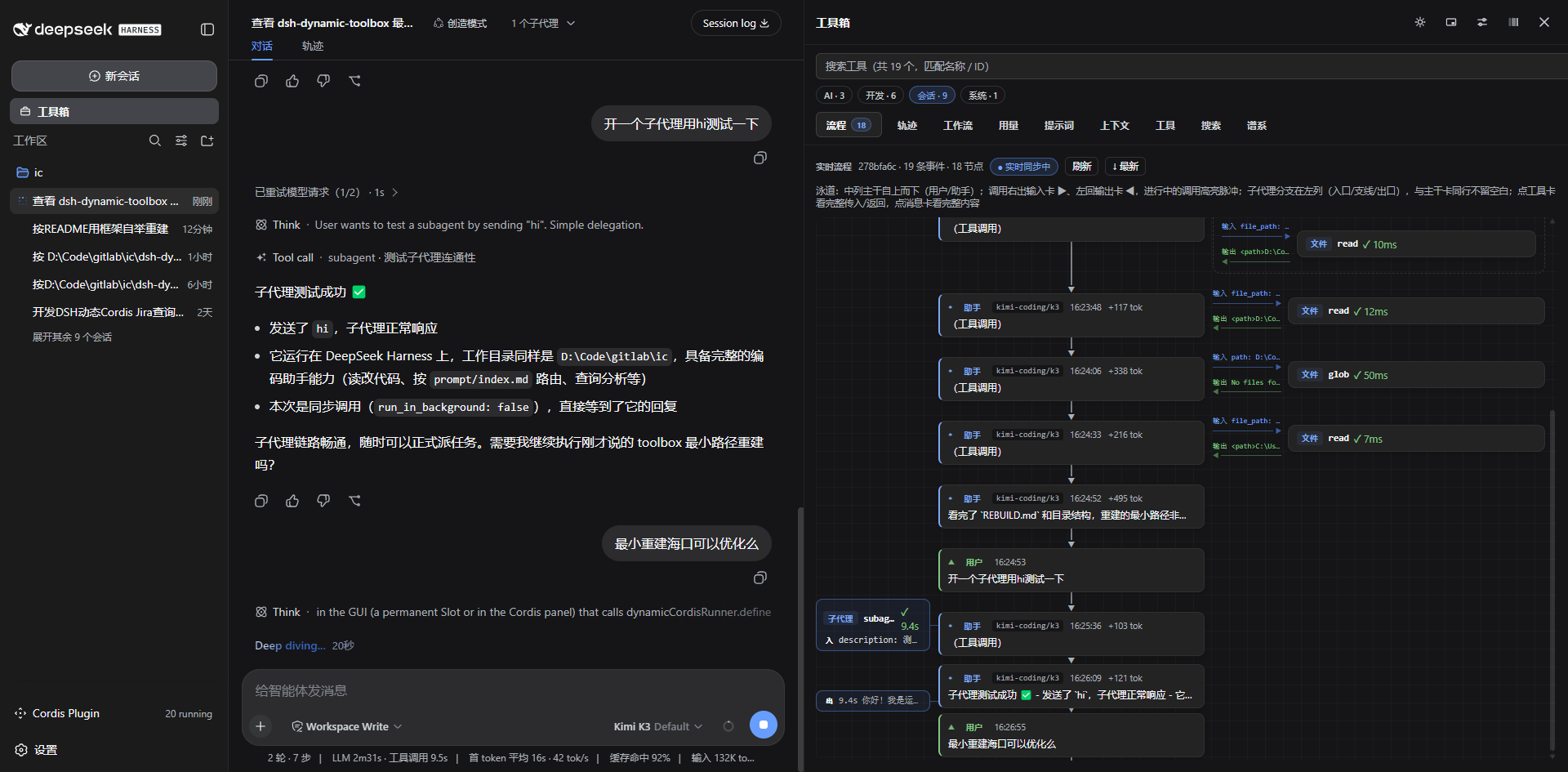

实时流镜
抽屉默认 Tab,把当前会话实时画成流程图,每 2s 静默自刷(live 开关可暂停):
- 三列泳道:中列主干自上而下走「用户/助手」步骤;工具调用右出输入卡 ▶、左回输出卡 ◀(成功绿色、错误红色、进行中虚线)
- 子代理分支:子会话在左列长出独立支线(入口/支线/出口),与触发它的主干卡同行不留空白,支线步骤取自子会话自己的日志
- 钻取:点分支上的「进入 →」打开该子会话自己的流程图,「← 返回」逐级退回,嵌套不限层数
- 并行分组:同一步的多个并行调用用虚线框 +「并行 ×N」角标圈成一组;进行中的调用高亮脉冲,一眼看到智能体正跑到哪一步
- 零跳跃详情:点工具卡看完整传入/返回,点消息卡看完整内容(含模型/tokens 元信息);详情挂右侧浮层、不撑高流程内容,展开收起滚动位置不动
- 兼容 DSH-better-sidebar:同时安装
dsh-better-sidebar后,流镜会注册按会话隔离的原生 Tab,不可见时暂停刷新;未安装时继续使用原独立抽屉
工具箱
流镜之外,同一个抽屉承载 21 个热重载小工具(由框架插件统一承载:Host 注册表 + RPC、Client 抽屉/Tab/通用 HTML 面板壳 + tb- 设计系统):
| 分组 | 工具 |
|---|---|
| 项目工具 | jira(查询/归档)、git(历史/diff)、files(工作区文件树) |
| 实用工具 | trace、http、ports、calc 5 合 1(编解码/正则/Cron/文本对比/生成器)、quota(API 配额)、flowedit(工作流文档) |
| 会话洞察 | usage(token/上下文)、prompt(系统提示词拼装)、context(上下文窗口)、tools(schema 清单)、search(全文搜索)、lineage(谱系树) |
| AI 工具 | aiassist 7 合 1(问答/翻译/优化/评审/提交信息/摘要/对比)——共用 makeLlmHelper 路由 |
| 界面自查 | selfview(截屏/语义快照/ui_* 模型工具) |
| 主题 | theme-teal / theme-amber(互斥,按需激活) |
- 自举重建:框架启动自动补齐 plugins.json 中缺失的全部插件(幂等,22 个约 0.3s),遵循逐插件启停记忆
- 零模型调用自举(可选):
host-bootstrap/开会话即自动启动框架——0 次模型调用、1 次批准点击、任何模式 - 契约冒烟:
node smoke.mjs运行 21 套模拟,含真实 rc.8 Cordis 组合与多工作区隔离覆盖
安装
前置:已安装并运行 DeepSeek Harness(支持动态 Cordis 插件);仓库根作为工作区打开(或 clone 为工作区的一级子目录)。
方式 A · npm 安装编译包(推荐)
dsh plugin --profile web add dsh-flowglass # 仅流镜(框架自动隐式加入)
dsh plugin --profile web add dsh-dynamic-toolbox # 完整工具箱
# 升级:dsh plugin --profile web add dsh-flowglass@<新版本> 然后重启 DSH
编译包是原生静态 Host/Client 包:无动态批准、无 dyn/*,Service/RPC/Slot/DOM/storage/事件按 bundleId 隔离;不热重载——升级 = add 新版本 + 重启 DSH。
可选:同时安装 dsh-better-sidebar,然后从其「+」菜单打开「流镜」。设置页「侧边卡片」可选择自动集成、原生侧边 Tab 或旧版独立抽屉。
方式 B · 源码自举(自己的机器,装一次)
1. pwsh host-bootstrap/install.ps1 # 幂等;卸载加 -Uninstall
2. 重启 DSH
3. 任何模式开新会话 → 批准卡点一次允许(不归属任何会话;同仓库并发会话 single-flight 只弹一份)
→ 框架自动补齐全部 22 个插件(selfview 会再弹一张批准卡)
(注册表按仓库分键:同一仓库已有框架实例时新会话跳过自举,直接共享;不同仓库各自自举并行共存)
4. 多工作区并存:同一 DSH 进程内多个工作区可并行(抽屉跟随当前工作区切换,v6.3 multiplex);
需要进程级隔离时再走「每项目一个独立 DSH 实例」——均见 `REBUILD.md` → **多工作区并存**小节。
方式 C · 零安装(AI 驱动,DSH 里不留任何东西)
1. 会话切到「创造模式」(唯一挂载 cordis_define/cordis_run 的 preset)
2. 会话中:cordis_define ← plugins/toolbox/payload.json
3. cordis_run,批准一次 → 框架自动补齐其余插件
两条路互不冲突、随时互切:bootstrapper 幂等跳过已定义,框架 doRebuild 幂等补齐缺失。跑起来之后,日常补齐/重跑/启停在任何模式都能进行——抽屉管理视图与 Cordis 面板直驱进程级全局 runner,不经过模型工具。凭据(Jira 等)走 Harness 凭据存储或环境变量,不写入本仓库任何文件。完整细节见 REBUILD.md,插件开发见 PLUGIN-DEV.md。
本地构建发布包
同一份 plugins/ 源码可编译成可安装的 npm 包:
# 查看所有可选功能和参数
node scripts/build-toolbox-bundle.mjs --help
# Flow-only → dist/toolbox-bundles/flow/
node scripts/build-toolbox-bundle.mjs --flow --version 0.1.0 --clean
# Flow + Jira → dist/toolbox-bundles/flow-jira/
node scripts/build-toolbox-bundle.mjs --flow --jira --version 0.1.0 --clean
# 等价的通用写法;发布 scoped 包时可指定 --name
node scripts/build-toolbox-bundle.mjs `
--features flow,jira `
--id flow-jira `
--name @your-scope/dsh-flow-jira-toolbox `
--label "Flow + Jira 工具箱" `
--version 0.1.0 `
--clean
--name 决定 npm 包名(npm publish 直接发布);--version 必须是合法 semver。验证与打包:
node scripts/verify-bundle.mjs dist/toolbox-bundles/flow --pack
Push-Location dist/toolbox-bundles/flow
npm pack
Pop-Location
npm pack 会在对应目录生成类似 dsh-flow-toolbox-0.1.0.tgz 的文件。升级:提高 --version,重新构建、验证、npm pack,再对新 tgz 执行同一个 dsh plugin ... add 命令并重启 DSH。卸载:
dsh plugin --profile web remove dsh-flow-toolbox
dsh plugin --profile web remove dsh-flow-jira-toolbox
编译合集自包含(不读本仓库 loader.js / plugins.json / payload.json),Service、Remote、Slot、DOM、storage、事件和 CSS 全部按 bundleId 隔离,可与动态模式及其他合集同进程共存。工具业务数据仍落工作区 .dsh-dynamic-toolbox/;静态合集没有动态管理/热重载,升级必须重新构建、安装并重启。selfview 仍依赖动态专用 harness bridge,迁移为原生 Remote 前静态编译器会明确拒绝它。
- 动态开发模式仍遵循
<工作区>/.dsh-dynamic-toolbox/toolbox-plugins.json启停记忆;原生静态合集的功能集合由构建命令固定 - 静态合集显式选择主题即随原生 Client 加载;动态模式主题仍按原有方式 define 后按需启动
框架优势(为什么全动态)
- 工作区隔离、进程内复用:同一进程可并行承载多个仓库工具箱;注册表、管理操作和启停记忆均按所属工作区路由
- 桩热重载:实现全在磁盘、payload 仅 ~0.9KB 桩;点「重跑」即生效,不重启进程、不重新批准
- 批准闸门保留:浏览器代码每进程仍过一次手,不存在"安装即永久信任"
- 不可变多版本:Package 并存,update 切指针、失败不丢旧版、回滚一条命令
- 自举重建:动态插件不跨进程——框架启动自动补齐缺失(~0.3s);配 host-bootstrap 则开会话即重建
- AI 原生:
cordis_define/cordis_run是模型工具,智能体能在运行时自己造工具装上用
扩展:开发自己的工具插件
耦合面只有两条——ctx.get(TOOLBOX_RUNTIME.registryService).register(desc, handler)(经 shared/host.js 的 tryRegisterTool)和 HTML 面板协议。新插件三步:建 plugins/<key>/tool.js → build/plugin-catalog.mjs 的 PLUGINS 表加一行 → node make-payloads.mjs 后 define+run;骨架约 15 行,Host-only 不用写 Client 代码。完整指南(面板契约/踩坑/主题/冒烟):PLUGIN-DEV.md。
数据与隐私约定
以下内容不入库(见 .gitignore):
| 路径 | 内容 |
|---|---|
.dsh-dynamic-toolbox/ |
运行状态与历史:Jira 查询记录、AI 台账、启停记忆、自举偏好、自动补齐报告 |
.dsh-dynamic-toolbox/data/ |
内容产物:Jira 工单归档(issue.md/json + 附件) |
.scratch/ |
开发草稿/一次性脚本 |
文档索引
REBUILD.md— 目录结构、重建(含零模型调用自举)、迭代、数据与凭据PLUGIN-DEV.md— 新插件三步、impl 骨架、面板契约插件.md— 心智模型与真实坑清单
License
MIT © 2026 Iwctwbh
